The LT-2 LM 500 MY reflects AceMicromatic Group’s focus on delivering advanced, high-productivity machining solutions for the evolving manufacturing industry.

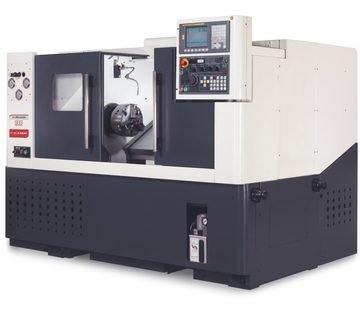

The LT-2 LM 500 MY is a high-performance CNC horizontal turn-mill center equipped with main spindle, C-axis, and Y-axis capabilities. It is designed to enable complete machining of complex components in a single setup, combining turning, milling, drilling, tapping, and contour machining in one machine.

By integrating multiple machining operations, the machine helps reduce cycle time, handling, and secondary operations while improving accuracy and productivity. With a Y-axis capability of ±40 mm, C-axis interpolation, a 12-station live-tool turret, and linear motion (LM) guideways, the LT-2 LM 500 MY delivers high-speed, smooth movement and repeatability.

The machine offers a maximum turning diameter of 375–386 mm, a turning length of 500 mm, a bar capacity of 51 mm, and a main spindle speed of up to 4,000 rpm. These capabilities make it suitable for a range of applications across the automotive, hydraulic and pneumatic, aerospace, medical, general engineering, and oil & gas industries.

Its single-setup machining capability improves positional accuracy and concentricity while reducing runout, handling, and fixture requirements. The LT-2 LM 500 MY is also Industry 4.0-ready, offering a combination of flexibility, precision, and enhanced manufacturing productivity.

AceMicromatic Group
Hall & Stall: 2/2B-10
www.acemicromatic.net
